    Temperature Rise Power Testing System Primary Current Injection Test System 5000AMPS

    Ask Lasest Price
    Brand Name : Sansion Power
    Model Number : DDG
    Certification : ISO, SGS, ilac-MRA, CNAS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 Sets Per Month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Temperature Rise Power Testing System Primary Current Injection Test System 5000AMPS

    Temperature Rise Power Testing System Primary Current Injection Test System 5000AMPS


    General information

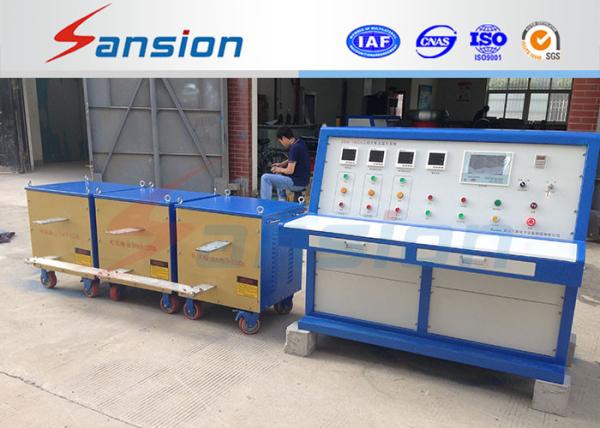

    DDG Primary Current Injection Test Set is suitable for current load test and temperature rise test on various circuit breakers, switchgears, CT/PT and others electric equipments. DDG Primary Current Injection Test Set is widely used in power division and industry mining enterprises.


    Features


    √ Could be designed to separate or compact structure according to the volume and weight. Easy to move.


    √ High stability of current rising.


    √ Output current no-polarity adjusts.


    √ Two current meters, can read measurement range easily.


    √ Wide range of load changing.


    √ Reliable and easy to operate.


    √ Autotransformer is adjustable.


    Specifications


    √ Output current:200~10000A


    √ Input voltage: 220V or 380V


    ModelRated Capacity
    (KVA)
    Rated InputRated OutputImpendence Voltage
    %
    No-load Current
    %
    Structure
    RegulatorCurrent InjectorCurrent(A)Voltage(V)Current(KA)Voltage(V)
    DDG-1.5/5001.51.56.82200.53<8<6Compact
    DDG-3/10003313.602200.5/16/3<8<6Compact/Separate
    DDG-6/20006627.002201/26/3<8<6Separate
    DDG-12/4000121237.504002/46/3<8<6Separate
    DDG-15/5000151537.504002.5/56/3<8<6Separate
    DDG-30/100003030754005/106/3<8<6Separate
    DDG-45/150004545112.54007.5/156/3<8<6Separate

    Note:"Rated output", left value is output in series, right value is in parallel


    For example"0.5/1":"0.5"is in series;"1"is in parallel.


    Warranty: One year quality guarantee after shipment.

    Please contact with us for further information, our technically expereinced expertise team will select correctly designed test set for you.
