    10000AMPS Primary Current Injection Test Set Over Heat Protection Function

    Ask Lasest Price
    Brand Name : Sansion Power
    Model Number : DDG
    Certification : ISO, SGS, ilac-MRA, CNAS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 Sets Per Month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    10000AMPS Primary Current Injection Test Set Over Heat Protection Function

    Primary Current Injection Power Testing System up to 10000AMPS

    Product Description
    General information

    DDG Primary Current Injection Test Set is suitable for current load test and temperature rise test on various circuit breakers, switchgears, CT/PT and others electric equipments. DDG Primary Current Injection Test Set is widely used in power division and industry mining enterprises.

    Features


    √ Two current meters, can read measurement range easily.

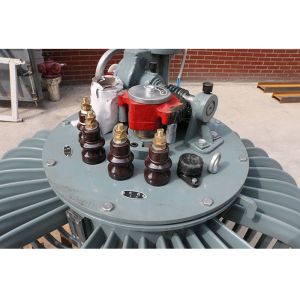

    √ Autotransformer is adjustable.


    √ Reliable and easy to operate.


    √ Could be designed to separate or compact structure according to the volume and weight. Easy to move.


    √ Output current no-polarity adjusts.


    √ High stability of current rising.


    √ Wide range of load changing.


    Specifications:


    √ Input voltage: 220V or 380V


    √ Output current:500~10000A


    ModelRated Capacity
    (KVA)
    Rated InputRated OutputImpendence Voltage
    %
    No-load Current
    %
    Structure
    RegulatorCurrent InjectorCurrent(A)Voltage(V)Current(KA)Voltage(V)
    DDG-1.5/5001.51.56.82200.53<8<6Compact
    DDG-3/10003313.602200.5/16/3<8<6Compact/Separate
    DDG-6/20006627.002201/26/3<8<6Separate
    DDG-12/4000121237.504002/46/3<8<6Separate
    DDG-15/5000151537.504002.5/56/3<8<6Separate
    DDG-30/100003030754005/106/3<8<6Separate
    DDG-45/150004545112.54007.5/156/3<8<6Separate

    Note:"Rated output", left value is output in series, right value is in parallel


    For example"0.5/1":"0.5"is in series;"1"is in parallel.
