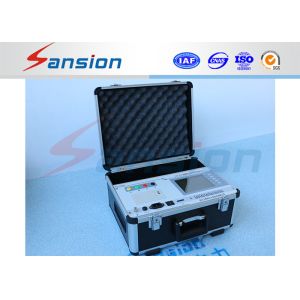

    High Amplitude Resolution Transformer Testing Machine Accurately For Transformer

    Ask Lasest Price
    Brand Name : Sansion Power
    Model Number : SXYZ-3000
    Certification : CE, ISO, SGS, ilac-MRA, CNAS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 Sets Per Month
    • Product Details
    • Company Profile

    High Amplitude Resolution Transformer Testing Machine Accurately For Transformer

    Transformer Test System on Load Tap Changer Analyzer For Transformer


    General information:


    SXYZ On-Load Tap-Changer Analyzer is designed to measure and analyze the electrical performance of on load tap changer of power transformers and special transformers.


    Features:


    1. High precision


    2. Light beam oscillograph function. SXYZ can simultaneous record A,B,C three phase, can auto catch and display transit resistance during transiting and the process of time changing.


    3. To realize all the performance measurement on load tap changer. For example: switch selecting, break point, transit waveform, transit time, three phase synchronism and etc.


    4. Comprehensive measured result analyzing: can analyze the resistance value of every point and every segment of waveform, every period of time and three phase synchronism and etc.


    5. LCD screen, friendly English interface.


    6. SD/SDMMC storage card: 0.5~2 G. Test data SD no limitation storage. And data in SD can be converted via SD-USB to upload to PC U disk.


    7. Build-in thermal print.


    8. Anti interference, wide working supply source range.


    9. Compact designation, suitable for wild filed testing.


    Specifications:


    Voltage Output>20VWorking SupplyAC220V±10%,50Hz
    Current Output≥1APower180W
    Resistance Measuring Range0.3~40ΩResistance Measuring Precision

    0.1Ω~1Ω±0.1Ω,1Ω~40Ω±5%

    (exclude1Ω)

    Time Measuring Range1ms~256msTime Measuring Recision

    1ms~100ms±0.1ms

    100ms~250ms±1%

    3 Phase Synchronism0.1msSampling Rate10~20KHz
    Working Temperature0~40ºCWorking Humidity≤80%RH

    More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
