    Automatic Control Transformer Test System Three Phase Capacitance Inductance

    Automatic Transformer Test System Three Phase Capacitance Inductance Tester


    General information:

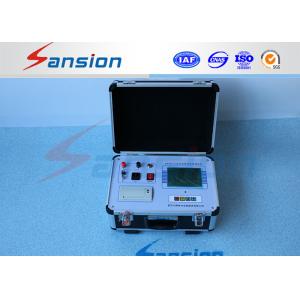

    SXDR-G Automatic Capacitance Inductance Tester is designed to on site detect on capacitance of substation capacitor.


    Features:


    Portable, easy to operate. High measuring accuracy.To detect capacitor without dismounting.Can measure inductance of reactor.LCD screen, build-in thermal printer.


    Specifications:


    Capacitance:Measuring range: 0.5μF ~ 2,000μF
    Power measuring range: 5 ~ 20,000kvar
    Precision:±1.5% Read ±0.1μF
    Resolution:0 ~ 1.999μF ±1.0%rdG
    0 ~ 19.99μF ±1.0%rdG
    0 ~ 199.9μF ±1.0%rdG
    0 ~ 1999μF ±1.0%rdG
    Current:Current measuring range:
    0~199.9mA
    0~1.999A
    0~19.99A
    0~199.9A
    0~1000A
    Precision: ±1.5%
    Inductance:Inductance measuring range:
    Small inductance 1mH~10Mh
    Large inductance 4 mH~10H
    Precision:±(3% read±0.1mH)
    Resolution: 0.01mH
    Power supply:Rated voltage: power frequency 220V±10%
    Rated frequency: 50Hz
    Rated output: 22V/500VA
    Working condition:Environmental temperature:
    0ºC ~ +40ºC
    Relative humidity: ≤90%

    Warranty: One year quality guarantee after shipment.


    More details please kindly contact with Sansion Power.Thank you!
