40km 35kV HV Cable Testing Equipment High Precision Cable Fault Locating System

SXDL-330
CABLE FAULT LOCATING SYSTEM

General Information:
SXDL-330 Cable Fault Locating system is important tool to maintain all kinds of cables. It uses various detection way to test cable faults, which is suitable for different levels voltage power cables and communication cables.

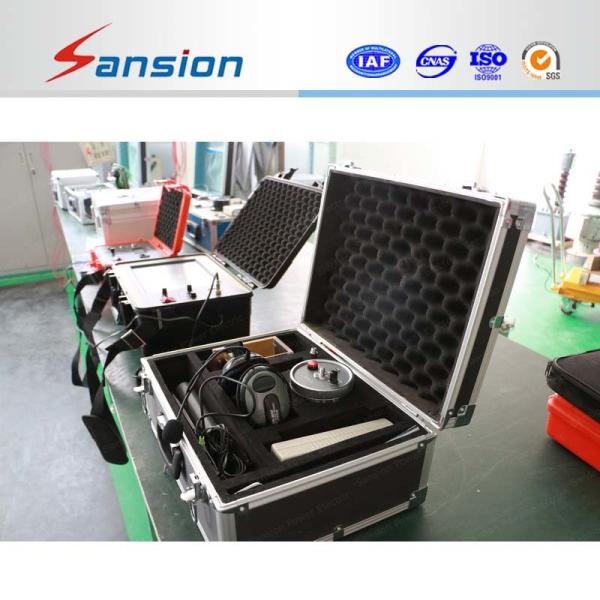

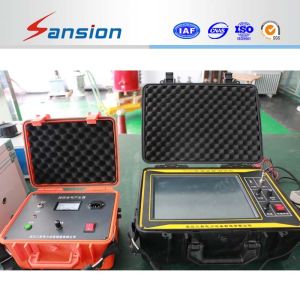

The system is including:

1. SXDL-330H HV Impulse Generator
2. SXDL-330B HV Bridge Locator
3. SXDL-330A Cable Fault Tester
4. SXDL-330D Cable Fault Locator
5. SXDL-330L Route Tracer
6. Accessories.

SXDL-330H is integrated with bridge and burn functions, applied for fault locating and DC Hipot test for cable, motor and etc HV test objects. It is used to generate HV impulse when adopting surge flashover method to detect high impedance fault.

Features:

• Compact designation, built-in energy motor, HV inside.
• HV output cable connects with floor.
• HV output to fault cable directly, operate safely, easy to use.
• Multi-protection, HV zero start, auto discharge HV capacitor energy when power off.
• DC HV output, can be adjusted continuously.
• Less damage to the cable.

To be equipped with micro ammeter to test the leakage current of motor.

• Portable design, easy to carry.

Specification:

SXDL-330A Cable Fault Tester
SXDL-330A is applied for detecting the different cable faults including: low impedance, short circuit, open circuit broken fault, high impedance leakage and high impedance flash over fault. It's suitable for various copper aluminum core power cables, coaxial telecommunication cable, and local cable.

Please contact Sansion Power for further information.
