    SXDL - 330A HV Cable Testing Equipment , LCD Screen High Voltage Tester For Cables

    SXDL - 330A HV Cable Testing Equipment Cable Fault Locating System


    General Information:


    SXDL-330 Cable Fault Locating system is important tool to maintain all kinds of cables. It uses various detection way to test cable faults, which is suitable for different levels voltage power cables and communication cables.The system includes TDR method and Murry bridge method. With this system, we can locate almost all types of cable faults effectively and conveniently.


    The system is including:

    SXDL-330H Intelligent HV Bridge

    SXDL-330L Cable Fault Locator

    SXDL-330D Cable Fault Location Power

    SXDL-330T Pin-Pointing Instrument

    Accessories.

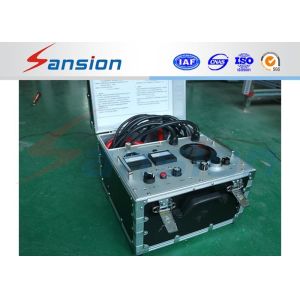

    SXDL-330H Intelligent HV Bridge ( including digital bridge and burning function), voltage can boost to 60kV, short circuit current 600mA. High voltage and energy, can burn high impedance and flash over fault to low impedance.


    Specification:


    Burn function:
    Output voltage:0-60kV (continuously adjustable)
    Short circuit current:600mA
    Bridge function:
    Output voltage:0-4kV (continuously adjustable)
    Short circuit current:600mA
    Display screen:128×64 LCD
    Locating precision:±(0.2%·L+1)m
    Measuring range:1~50000m
    Input power supply:220V AC±10%,50Hz
    Power:1kVA, generator supply (more than 1kW)
    EnvironmentalWorking temperature:-10ºC-+55ºC
    Storage temperature: -20ºC-+70ºC
    Dimension:300*460*500mm
    Weight:About 29kg

    SXDL-330L Cable Fault Locator is a professional Time Domain Reflectometer. It can be used to find open, short circuit fault. It can be used to prelocate high impedance cable fault with HV pulse power as well.

    Specification:

    • Low voltage pulse output voltage: 60V
    • Pulse width: 40ns 100ns 200ns 500ns 1µs 2µs 5µs 10µs (options)
    • Fault location error: ±0.4m (V=160m/µs)
    • Maximum length measurement for cable: 50km (V=160m/µs)
    • Operating power: Input 200~240V (50/60Hz), DC9V output
    • Weight: 5kg
    • Dimension: 35cm *26cm *15cm

    SXDL-330D Cable Fault Location Power is a mobile equipment for testing and fault locating on high voltage cables. It can be used to prelocate general high resistance cable fault with TDR locator.It can generate high pulse signal for pin-pointing.

    Specification:

    • Output voltage range: 0~30kV continuous and being adjusted.
    • Maximum burning current: 1000mA
    • Maximum discharge pulse :1800J
    • Pulse capacity: 4uF
    • Dimensions: 38cm(L)×38cm(W)×79cm(H)
    • Weight: about 65kg
    • Work power: 50Hz AC 220V±15%

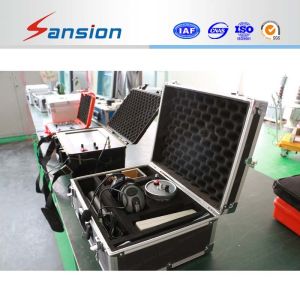

    SXDL-330T Pin-Pointing Instrument can be used to pin-point the fault.


    Specification:

    • Pin-point error with sound wave and electromagnetic method: 10% depth of the cable.
    • Location error of path: 10% depth of cable.
    • Operating power: 7.2V/4.4Ah Lithium battery operated, when full can work continuously for 10hours.
    • Weight: 1kg
    • Dimension: 21cm×9.6cm×10cm
