SXDL-330T HV Cable Testing Equipment Pin-Pointing Instrument

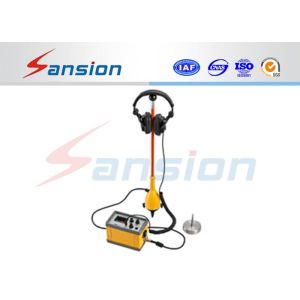

SXDL-330T Pin-Pointing Instrument can be used to pin-point the fault. The Pin-pointing equipment is a directional acoustic listening device for the pinpointing of flash-over faults on power cables. State-of-the-art technology and ease of handling enables even users without training to precisely locate cable fault in conjunction with a surge generator (thumper).

Method:

The pin-pointing equipment measure the signals received by specially developed magnetic and acoustic sensors, which are integrated in one housing.

The trace of the buried cable can be determined by the direction and the intensity of the magnetic field, produced by the impulse current of a surge generator.

The acoustic locating is done by measuring the flash-over noise. A switchable filter is built-in to optimise the measurement. A coincidence measurement is possible by receiving and indicating the signals of both sensors simultaneously.

Specification:

• Pin-point error with sound wave and electromagnetic method: 10% depth of the cable.
• Location error of path: 10% depth of cable.
• Operating power: 7.2V/4.4Ah Lithium battery operated, when full can work continuously for 10hours.
• Weight: 1kg
• Dimension: 21cm×9.6cm×10cm
