    Three Phase Power Testing System , Automatic Capacitance Inductance Tester

    Ask Lasest Price
    Brand Name : Sansion Power Electric
    Model Number : SXDR-G
    Certification : ISO9001 SGS
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 Sets Per Month
    Delivery Time : 5 Work Days
    • Product Details
    • Company Profile

    Three Phase Power Testing System , Automatic Capacitance Inductance Tester

    Three Phase Power Testing System Capacitance Inductance Tester Automatic


    General information:

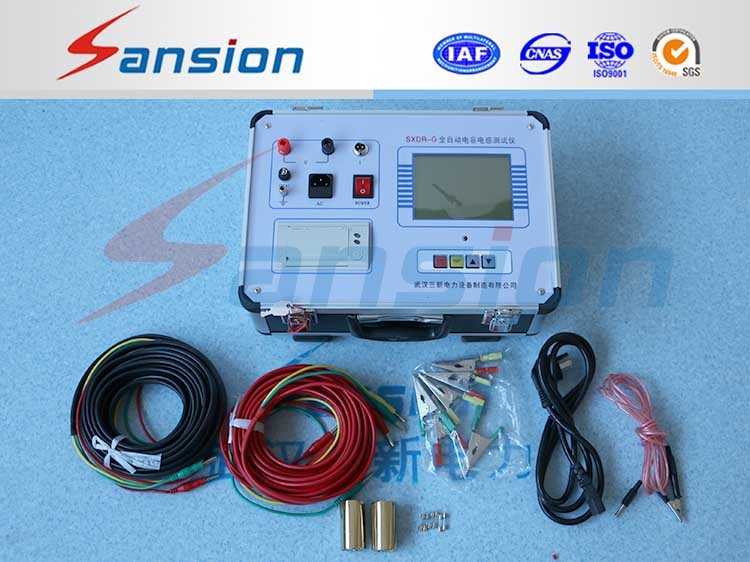

    SXDR-G Automatic Capacitance Inductance Tester is designed to on site detect on capacitance of substation capacitor.


    Features:
    Portable, easy to operate. High measuring accuracy.To detect capacitor without dismounting.Can measure inductance of reactor.LCD screen, build-in thermal printer.

    Specifications:

    Capacitance:Measuring range: 0.5μF ~ 2,000μF
    Power measuring range: 5 ~ 20,000kvar
    Precision:±1.5% Read ±0.1μF
    Resolution:
    0 ~ 1.999μF ±1.0%rdG
    0 ~ 19.99μF ±1.0%rdG
    0 ~ 199.9μF ±1.0%rdG
    0 ~ 1999μF ±1.0%rdG
    Current:Current measuring range:
    0~199.9mA
    0~1.999A
    0~19.99A
    0~199.9A
    0~1000A
    Precision: ±1.5%
    Inductance:Inductance measuring range:
    Small inductance 1mH~10Mh
    Large inductance 4 mH~10H
    Precision:±(3% read±0.1mH)
    Resolution: 0.01mH
    Power supply:Rated voltage: power frequency 220V±10%
    Rated frequency: 50Hz
    Rated output: 22V/500VA
    Working condition:Environmental temperature:
    0ºC ~ +40ºC
    Relative humidity: ≤90%


    Warranty: One year quality guarantee after shipment.

    More details please kindly contact with Sansion Power.Thank you!
