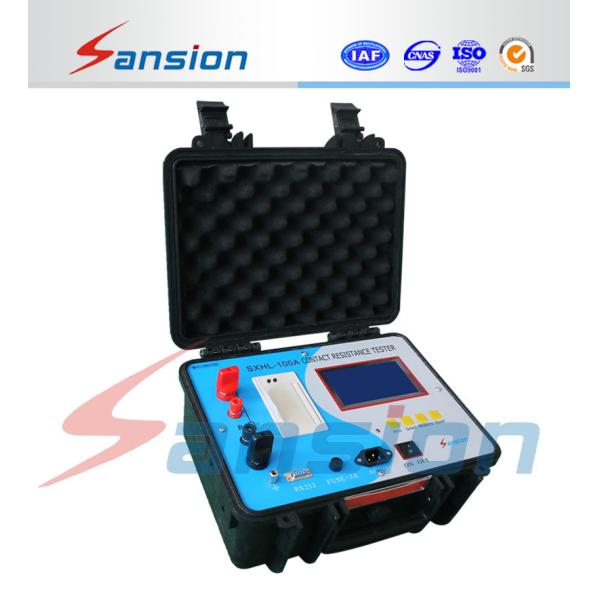

    Switchgear Loop Resistance Tester Portable With Adjustable Testing Current

    Ask Lasest Price
    Brand Name : Sansion Power
    Model Number : SXHL-II
    Certification : ISO9001 SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 Units
    Delivery Time : 5
    • Product Details
    • Company Profile

    Switchgear Loop Resistance Tester Portable With Adjustable Testing Current

    General information:

    SXHL is suitable for measurement on contact resistance, loop resistance of switchgear, power cable and weld joint. It's also known as Micro-ohmmeter.

    The current range and positions, with build-in printer or without are all customizable.

    Features:

    √ Measuring time is settable.
    √ Auto identify if large current lead was bad connected.
    √ Four leads measurement method, high Accuracy.
    √ Adjustable testing current and low ripple.
    √ LCD screens to display Current and Resistance
    √ USB interface.
    √ Over-current and Over-heat protection.
    √ Easy to operate.
    √ Portable, high precision.


    Specifications:


    Measure range:0-14999.9μΩ
    Resolution:0.01μΩ
    Test current:50A-100A-150A-200A is convertible. (current is at your customized)
    Accuracy:0.5%±5digit
    Screen:LCD English interface
    Max. output voltage:DC 5V/10V
    Standard output current:DC 50A-100A-150A-200A
    Duty:Continuous
    Input voltage:220V AC ±10% 50Hz±5Hz
    Measuring time setting range:15-60S

    More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
