Power Supply Automatic High Voltage Integrated Transformer Test Platform

General Information:
A complete line of Transformer Test Systems, from a small portable unit with a rating of 5kVA to power transformer Testing Systems capable of testing transformers with very high voltage and power ratings can be supplied. The line includes both single and three phase system for both distribution and power transformers. It's widely used in the fields of power supply and distribution, power transformer manufacturer, transformer maintenance center, industry and mining enterprises.

Features:

• Sansion Transformer Test System will perform tests in accordance with IEC 60076 and IEEE C57 serial latest edition standards.
• Applied for different voltage degree transformers, reactors and HV switchgears.
• Fully PLC controlling and measurement, integrated primary wire connection circuit displaying, measuring, control tracing, analysis processing, report storing, printing and protecting into the testing system.
• All the test data calculation was operated by IPC, the test results and measuring data are displayed in screen directly which highly improved the precision and efficiency.
• The test system could be customized to bench type, microcomputer type or any at user's option to be suitable for your test site.

Test Items:
Routine tests:

• Transformer oil testing (including acidity, dewpoint, flashpoint, breakdown, capacitance &tan delta, dissolved gas analysis)
• Transformer insulation resistance testing
• Transformer winding resistance testing
• Transformer turns ratio testing
• Transformer load/no-load current & loss testing

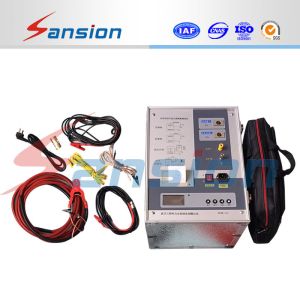

• Transformer capacitance & tan delta testing
• Transformer short circuit impedance & load loss testing
• Transformer power frequency withstand voltage testing
• Transformer inductive withstand voltage testing (including 110kV transformer partial discharge testing)
• Impulse voltage testing (including full wave, chopping wave testing)

Type tests:

• Temperature rising testing

Special tests:

• Zero-sequence impedance testing

Please contact SansionPower for further information.

Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 10 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.

Our products include:

HV Hipot Test Set System              Transformer Test Equipment

HV Switchgear Test Set                  Relay Protection Tester

CT/PT Tester                                    SF6/Oil Tester

Transmission Line Test System      Insulation Resistance Tester

Earth Resistance Tester

Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and etc, now we have more than 80 employees including 20 technical engineers. We have obtained the ISO9001 quality system certification and all products strictly conform to the international IEC or Chinese state standards.

Sansion Power has three subsidiaries companies:

Sansion Power Electric Co., Ltd. (R&D, manufacturing, marketing)

Sansion Power Electric Engineering Co., Ltd. (Electrical installation, laboratory construction, on-site service)

Sansion Power Electric Equipment Rental Co., Ltd. (Power electrical testing products rental and service)

From the date of order placing, we usually need 3-7 working days to manufacturing. Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean. Sansion Power also can provide OEM service according your customized. We are sincerely looking forward to cooperate with you from all the countries of the whole world.
